Differences Between Lithium-ion Cells, Modules, and Battery Packs

Lithium-ion cells have become the preferred energy storage solution for a wide range of applications, from portable electronic devices to electric vehicles. In the field of lithium ion cells, there are three important terms: cell, module, and pack. In this article, we will explore the differences between these components and clarify their unique roles and functions. Understanding these distinctions will help uncover the mysterious workings of lithium ion cells and gain insight into their applications in various industries.

Fundamentals: Lithium-ion cells

The core of lithium ion cells is the cell. The cell is the smallest unit of a battery and consists of three key components: anode, cathode, and electrolyte. These components work together to facilitate the movement of lithium ions during the charging and discharging process.

The anode is typically made of graphite and serves as the host for lithium ions during the charging process. It allows the lithium ions to embed within its structure. On the other hand, the cathode is responsible for storing the lithium ions during battery charging. Common cathode materials include lithium cobalt oxide (LCO), lithium nickel manganese cobalt oxide (NMC), and lithium iron phosphate (LFP).

The electrolyte is usually a liquid or gel-like substance that enables the movement of lithium ions between the anode and cathode. It acts as the medium through which ions traverse while preventing direct contact between the anode and cathode, which could lead to a short circuit.

Building Modules: Lithium Battery Modules and Packs

As a single battery may not provide sufficient energy or voltage for many applications, they are combined to form modules and lithium battery packs.

A module is an intermediate component between the individual batteries and the battery pack. It typically consists of multiple batteries connected in series or parallel configurations. The primary purpose of a lithium battery module is to increase the voltage or capacity of the battery system. Modules are often used in applications like electric vehicles that require higher voltages to power the vehicle's electric drive system.

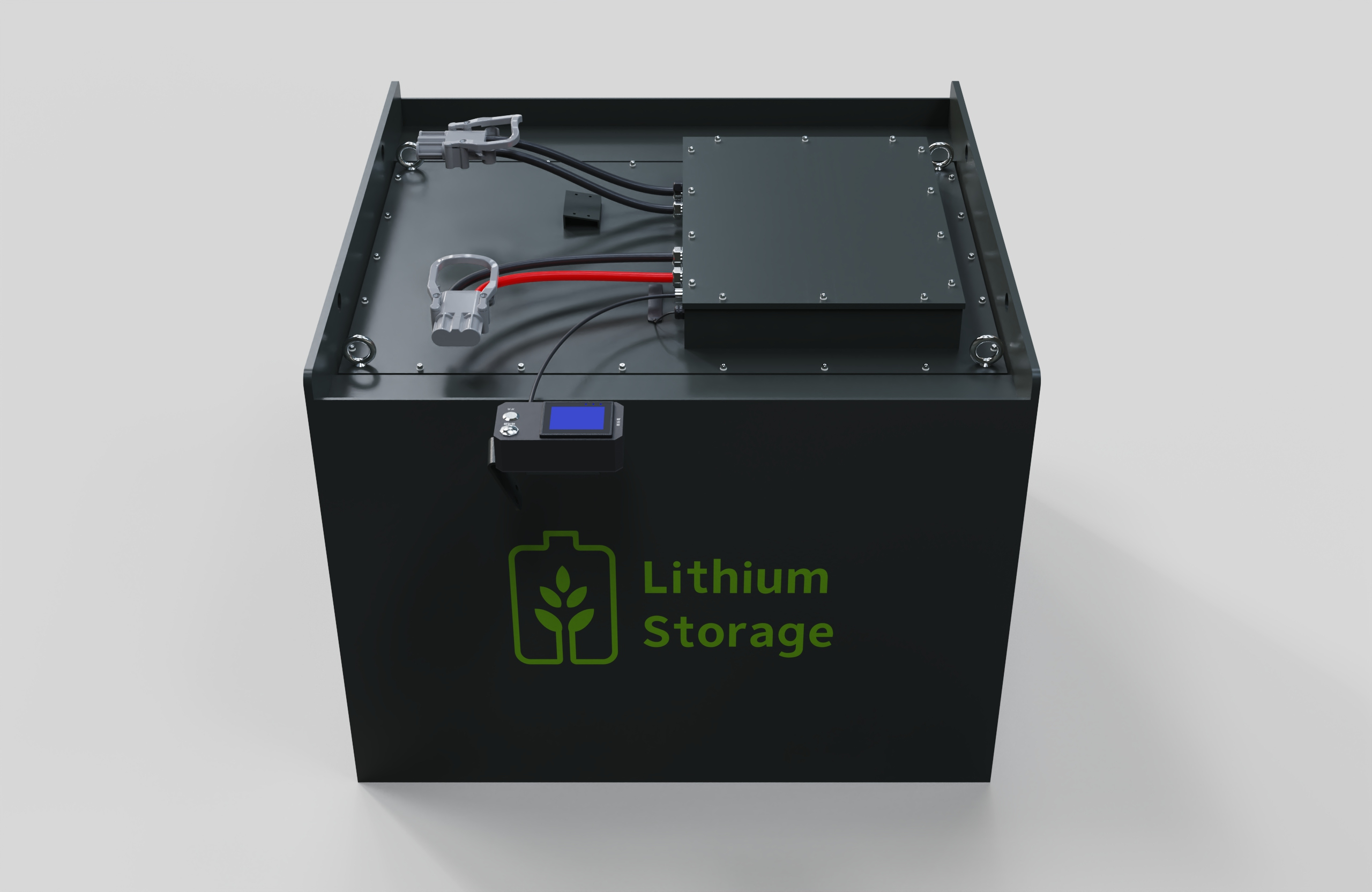

Moving up the hierarchical structure, we have the lithium battery pack. The pack is a collection of modules, batteries, and other components necessary for the proper operation of the battery system. It includes elements such as the battery management system (BMS), cooling system, connectors, and housing. The battery pack acts as the overall energy storage unit responsible for providing the required power for the intended application. It ensures proper connections between the batteries and modules, monitors their performance, and provides thermal management to maintain a safe operating temperature.

The design and configuration of a lithium battery pack depend on the specific application and desired performance characteristics. For example, an electric vehicle battery pack is designed to optimize range, power output, and safety, while a battery pack used for grid energy storage focuses on maximizing capacity and efficiency.

Lithium-ion cells have fundamentally changed the way we store and utilize energy. Understanding the differences between lithium ion cells, modules, and packs is crucial to mastering the complexities of these versatile energy storage systems. Batteries serve as the building blocks, modules increase voltage or capacity, and packs integrate all the necessary components to provide power for various applications. By combining these components in different configurations, manufacturers can customize lithium ion cells to meet specific requirements, whether it's powering electric vehicles, providing backup power, or energizing portable electronic devices. With ongoing technological advancements, we can expect further innovation in the design and application of lithium ion cells, driving us towards a greener and more sustainable future.
