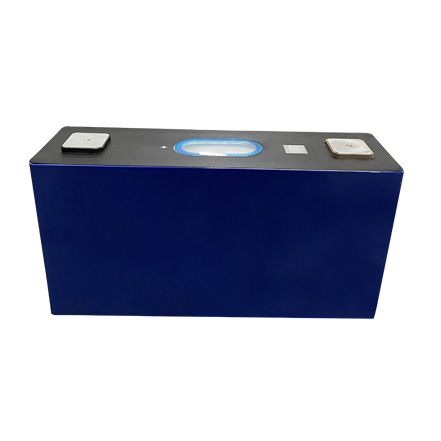

NCM243Ah Battery

Conform MEB 66220 series of cell format
The basic lithium ion battery cells to produce MEB 590 module
NCM 523 with outstanding energy density appropriately 240Wh/kg
1500times cycle life with maximum reliability.
Continuously improved energy density though nickle proportion promoting and light weighting technology.
Suitable for passenger vehicles and vehicles with limited space etcetera.

Get NCM243Ah Battery Price PDF Download

Technical Datas of NCM243Ah Battery

No.	Item	Specification	Note
1	Rated Capacity	243Ah	@1C
2	Nominal Voltage	3.66V	@1C
3	Actual Voltage Range	2.8-4.35V
4	Constant Discharge Current	≤486A	2C@10min
5	Peak Discharge Current	≤500A	@30s
6	Constant Charge Current	≤292A	1.2C
7	Peak Charge Current	≤486A	2C@10s
8	Operating Temperature	Charge: -20℃~55℃ Discharge: -30℃~55℃
9	Storage Temperature	-30℃~55℃
10	Cell Dimensions	Thickness:66.72±0.3mm Length:220.44±0.3mm Height: 113.37±0.3mm
11	Cathode Material	NCM 523
12	Weight	3.85±0.05kg
13	Energy density	240Wh/kg (1/3C ) 570Wh/L (1/3C)
14	Cycle life	≥1500 times	@0.5C/0.5C 100%DOD,80%EOL

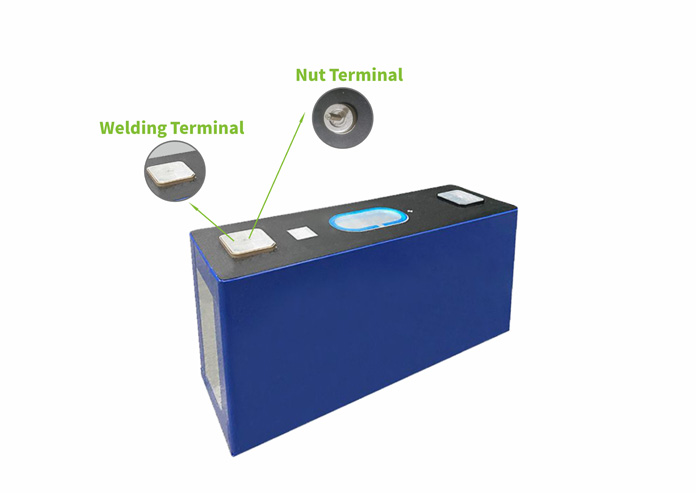

15	Terminal	Welding/Nut terminal
